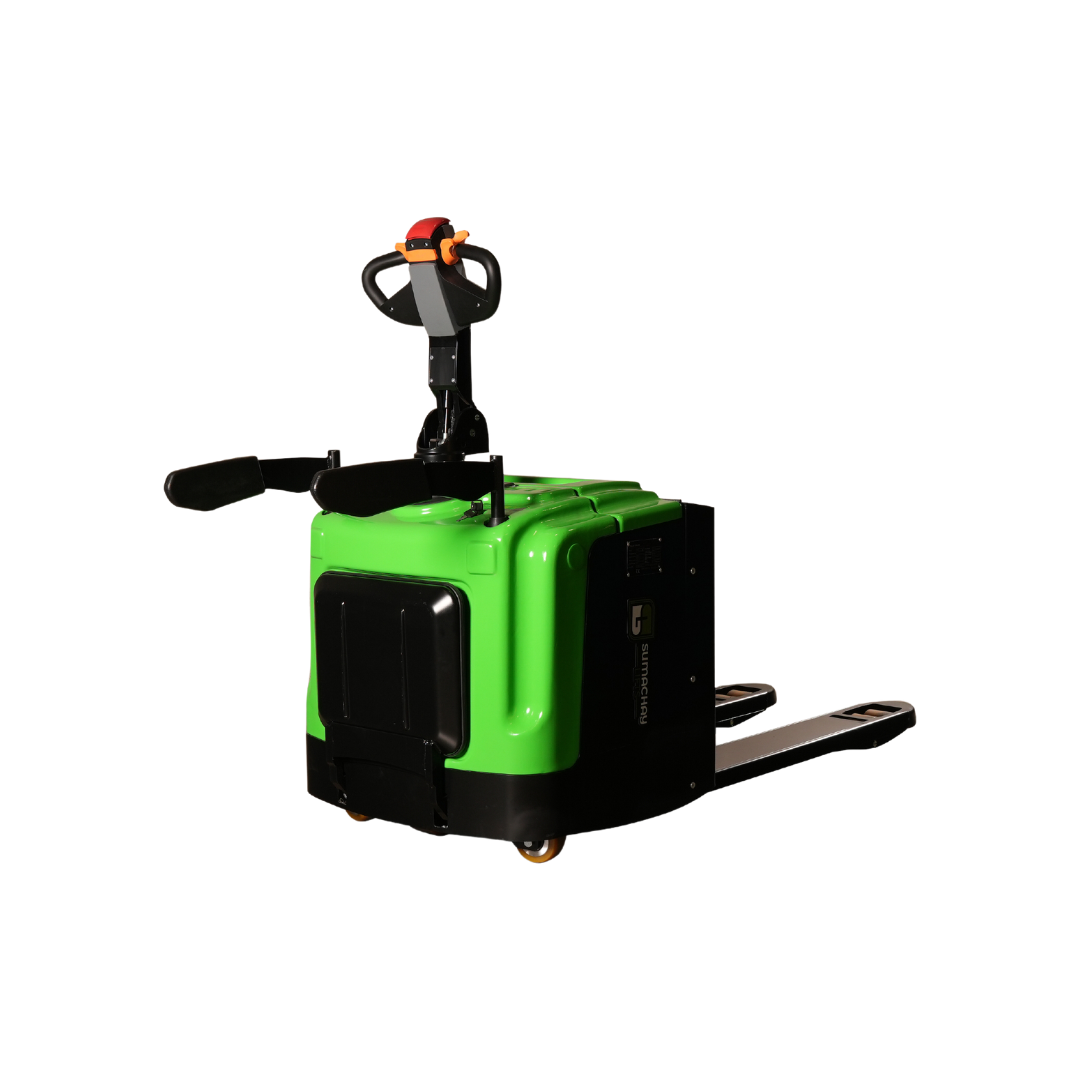

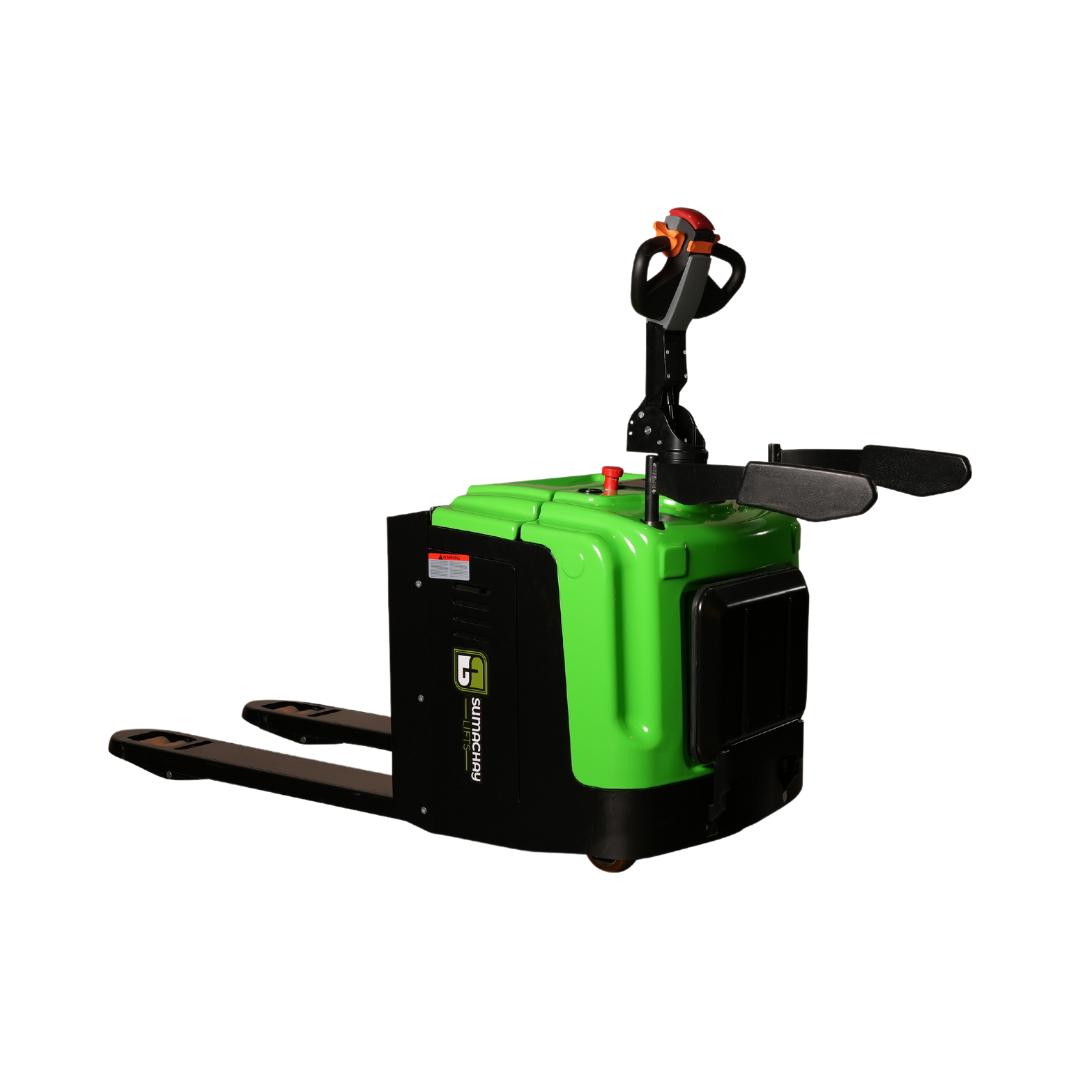

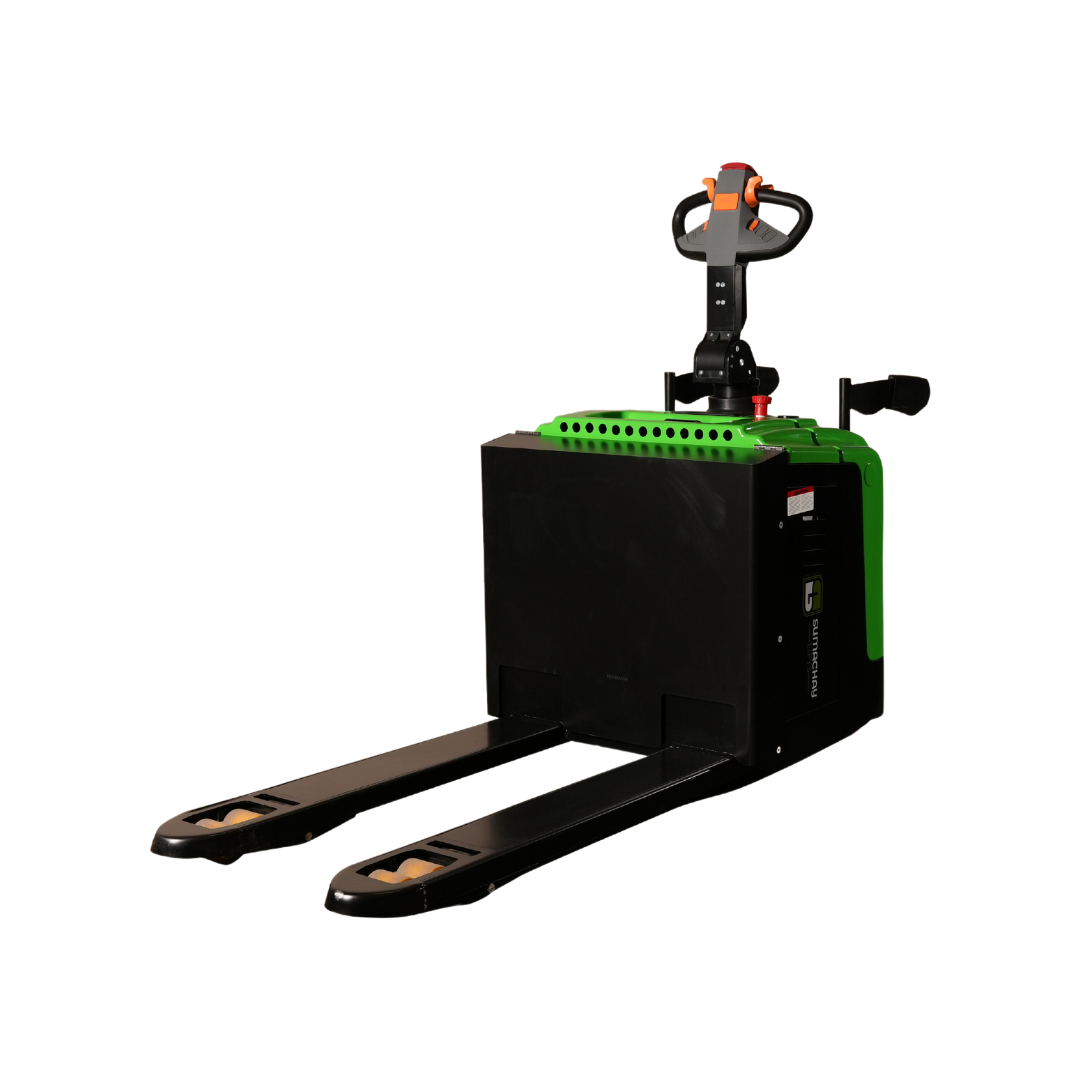

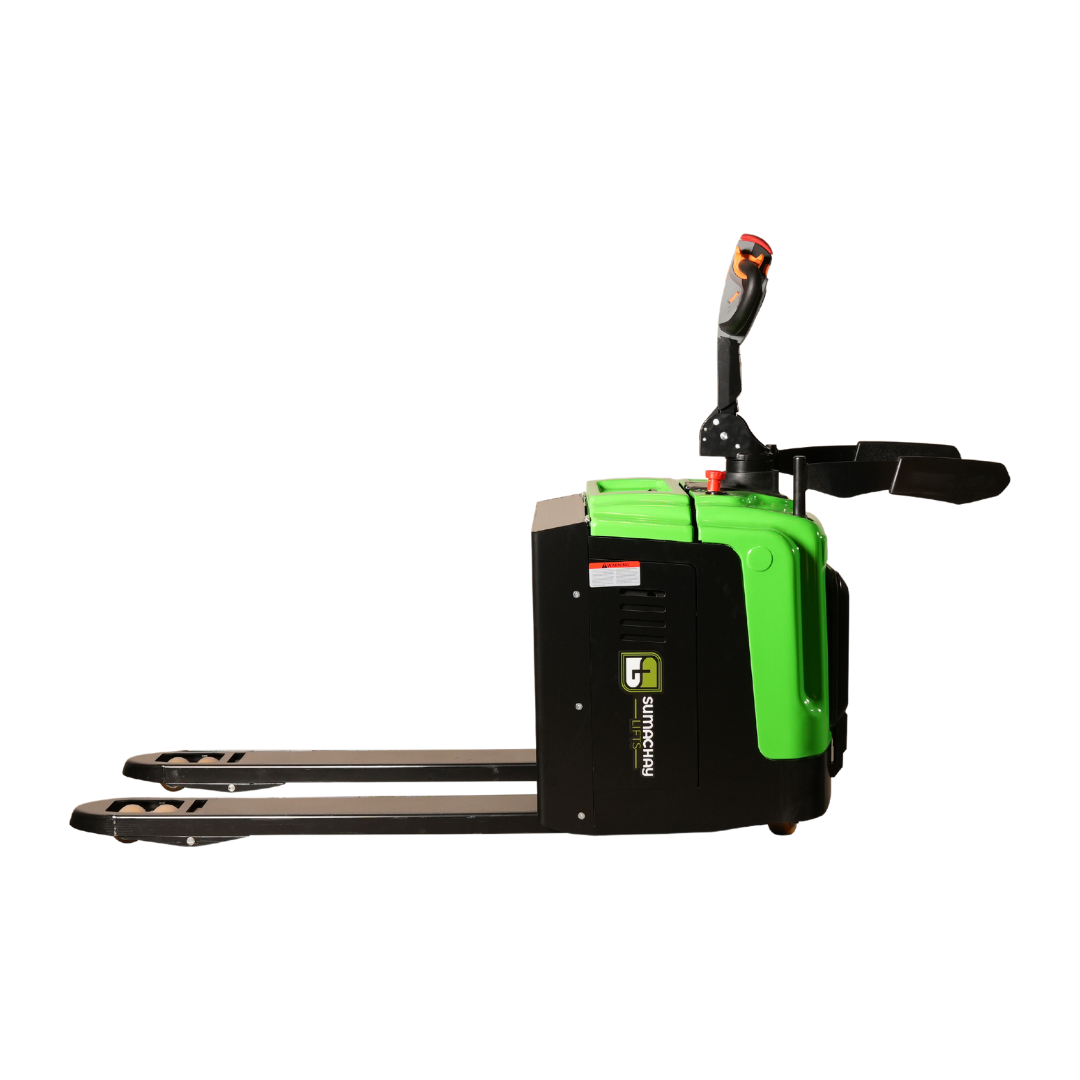

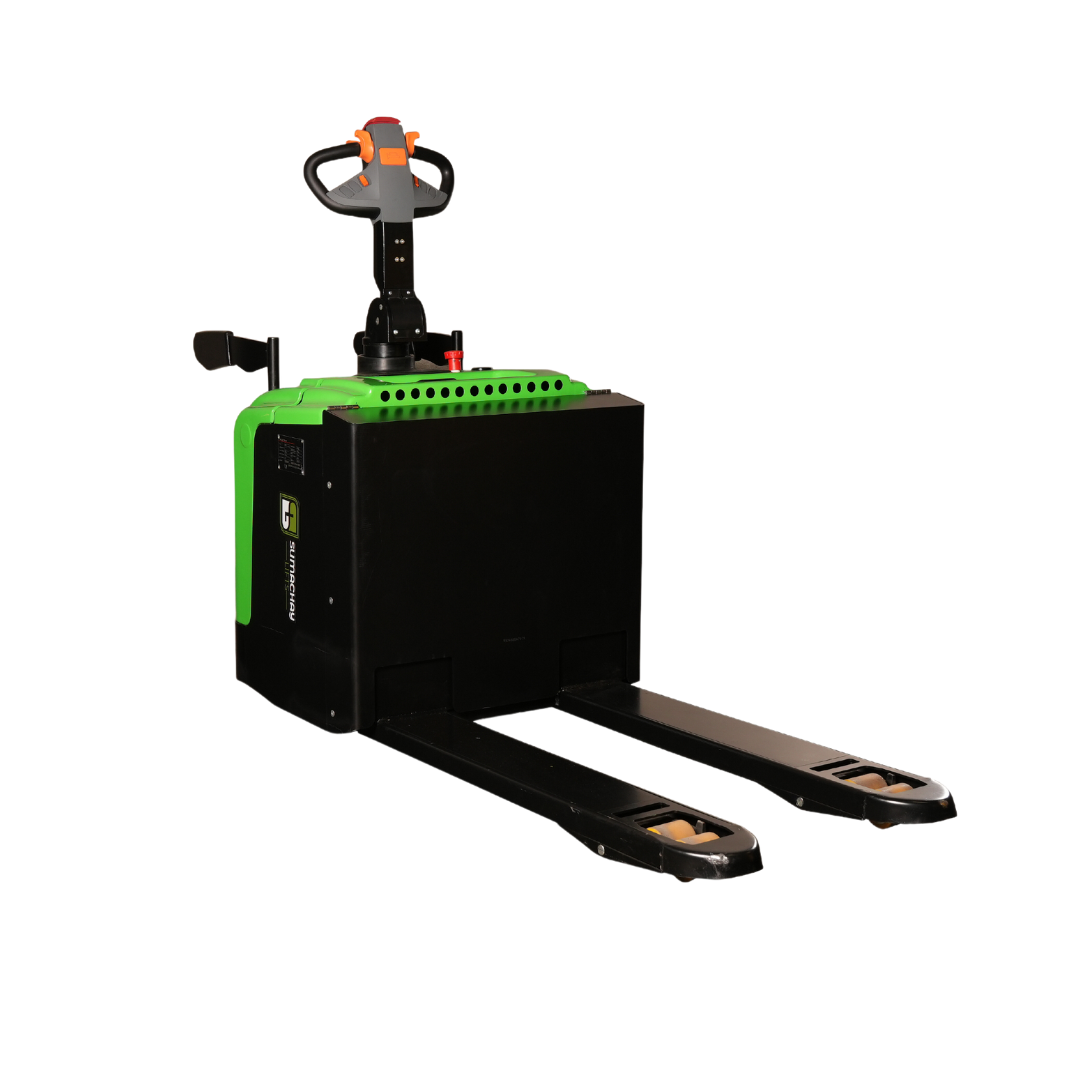

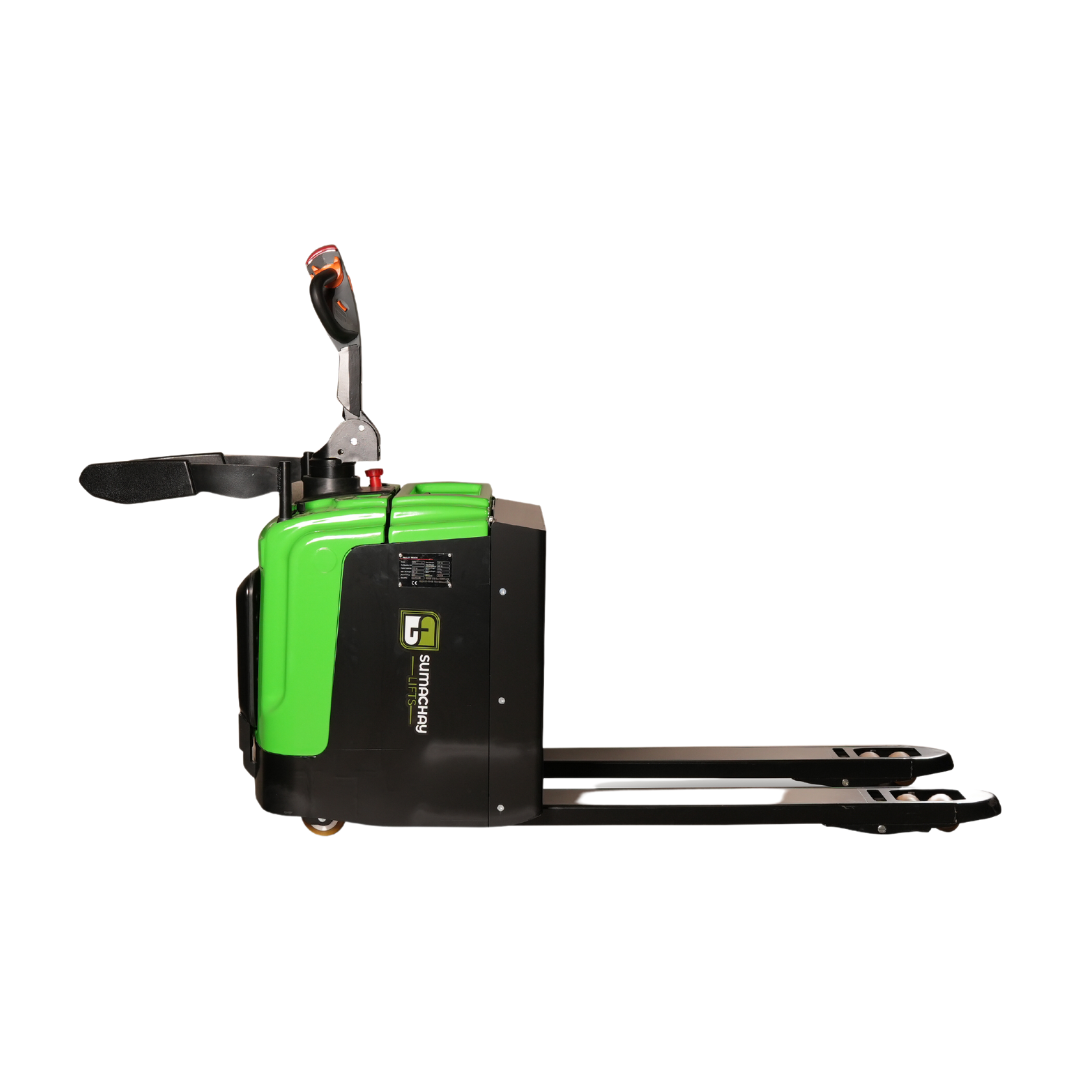

SER30 Heavy-Duty Ride-On Electric Pallet Truck – 3 Ton Lithium-Ion Power Lift
SER30 Heavy-Duty Ride-On Electric Pallet Truck – 3 Ton Lithium-Ion Power Lift
Out of stock
No brochure available for this product.
View full detailsCollapsible content
✔️ Exceptional Load Capacity: Handles up to 3000 kgs, ideal for high-capacity lifting and moving.
✔️ Advanced EPS System: Electric Power Steering provides smooth, precise control in tight spaces.
✔️ CURTIS AC Controller: Offers precise speed control, responsive acceleration, and braking.
Description
Elevate your material handling operations with the SER30 Ride On Electric Pallet Jack, engineered for heavy-duty performance and unmatched efficiency. With a powerful 3-ton capacity, this lithium-ion-powered jack is built to tackle demanding tasks in warehouses, distribution centers, and industrial facilities.
Key Features:
Exceptional Load Capacity: Effortlessly handle loads up to 3000 kgs, making it ideal for high-capacity lifting and moving.
Advanced Electric Power Steering (EPS): The intelligent EPS system ensures precise, easy control at any speed, with smooth handling in tight spaces and stable turning for safer operation.
CURTIS AC Controller: Experience precise speed control and flexibility, enabling smooth, responsive acceleration and braking.
Pressurized Cylinders: These advanced cylinders offer fast lifting, large output, and energy efficiency, while anti-skid features provide additional safety when handling heavy loads.

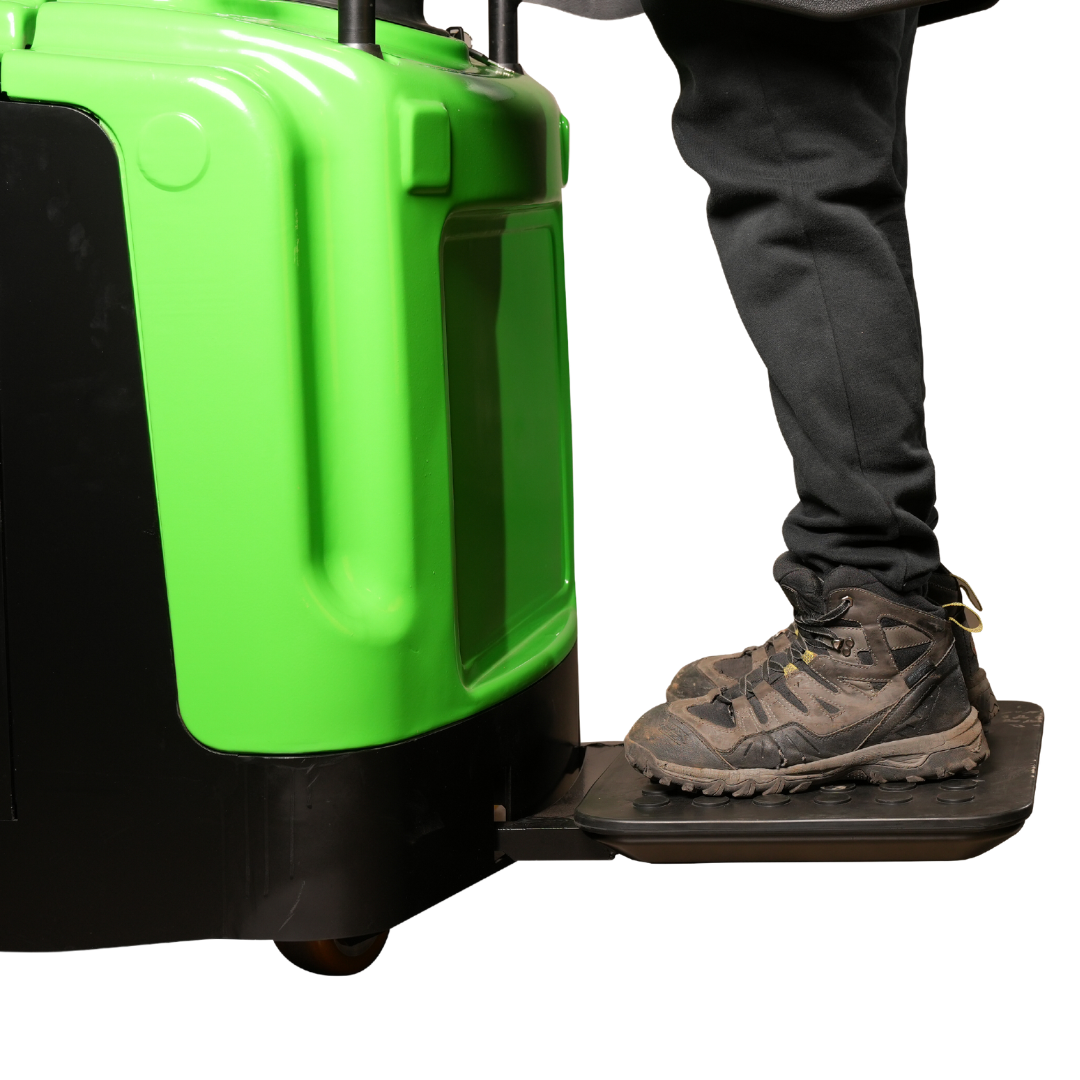

Ergonomic Design: Equipped with a shock-absorbing pedal, this ride-on model reduces vibration, enhancing operator comfort even on uneven surfaces.
Compact & Agile: With a tight 67.7-inch turning radius, compact structure, and EPS system, the SER30 easily maneuvers through narrow spaces and around tight corners.

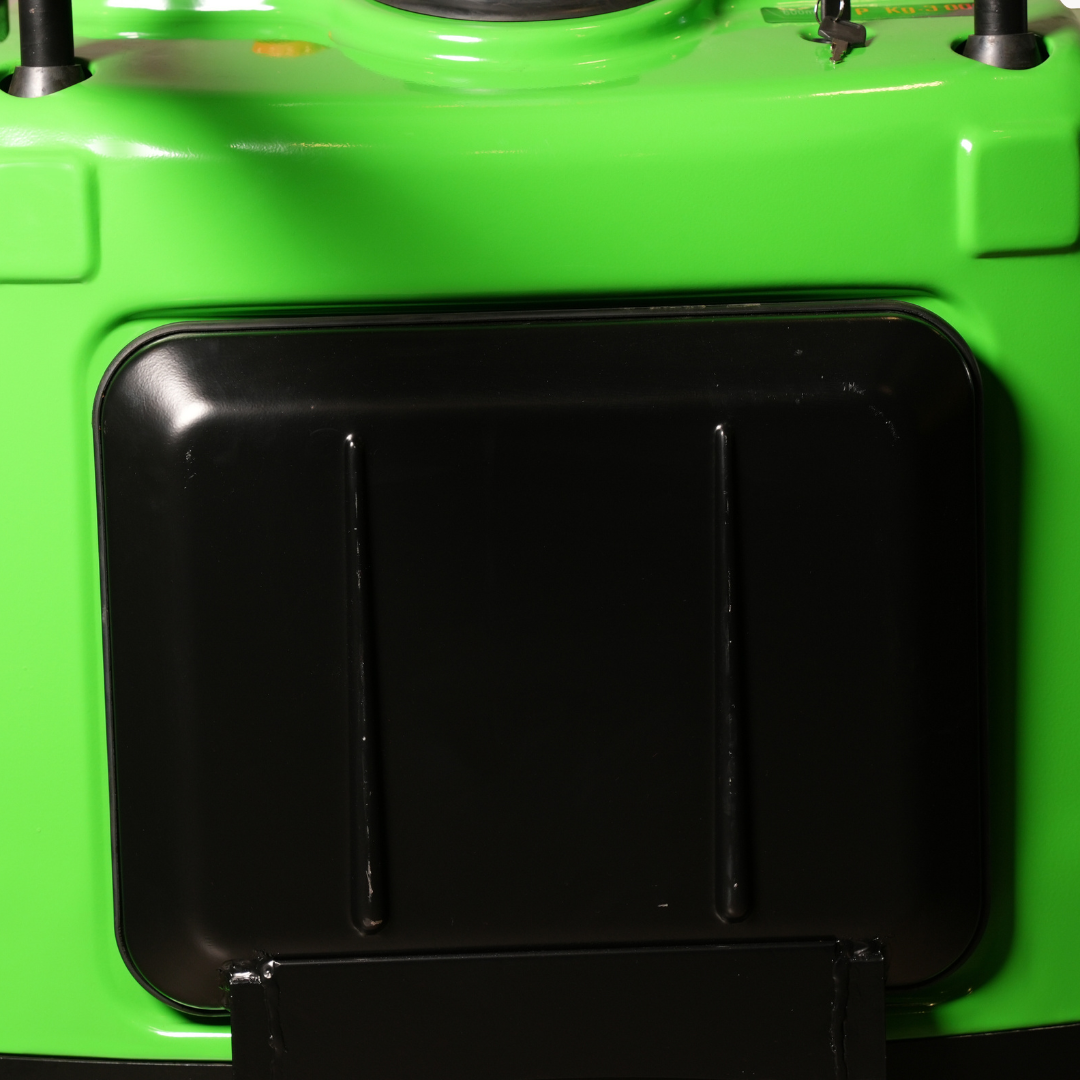

Convenient Storage Trays: Built-in storage trays keep essential tools and items within easy reach, optimizing productivity.
Robust Build: The strong chassis and stable lateral support provide enhanced durability, while rapid acceleration makes it a responsive and agile choice for busy work environments.
Backed by a high-performance lithium-ion battery, the SER30 Ride On Electric Pallet Jack is engineered for long-lasting power, reliability, and optimal efficiency, ideal for high-demand material handling operations.
Ready to optimize your warehouse workflow? Contact us at 9019294106 or email ram@sumachay.com for more details.
Product Details
Warranty Information
Warranty Information for Sumachay Pallet Lifts
Your SER30 Electric Pallet Jack comes with a 12-month warranty that begins on the date of purchase, as indicated on your invoice. This warranty covers comprehensive repairs in the event of a legitimate fault or breakdown. However, it does not extend to issues arising from normal wear and tear, accidents, negligence, or improper use.
Please note that this warranty is voided if the unit is used in environments where it is submerged in water or exposed to fluids or chemicals.
To ensure the longevity and reliability of your electric pallet lift, we strongly recommend adhering to routine maintenance. This includes regular cleaning, proper lubrication, and appropriate storage.
If you have any questions about your warranty or require service, please contact our customer support team for further assistance.
Technical Specifications
SER30 Ride On Electric Pallet Jack Specifications
Feature | Specification |
---|---|
Load Capacity | 2999 Kgs (3 tons) |
Electric Power Steering (EPS) | Intelligent system for precise control at any speed |
Controller | CURTIS AC Controller for smooth acceleration and braking |
Pressurized Cylinders | Fast lifting with anti-skid features for added safety |
Ergonomic Design | Shock-absorbing pedal to reduce operator fatigue |
Turning Radius | 67.7 inches, ideal for tight spaces |
Storage Trays | Built-in trays for tools and items |
Chassis and Support | Strong frame with stable lateral support for durability |
Battery | Lithium-ion, engineered for long-lasting power |
Specification | Value |
---|---|

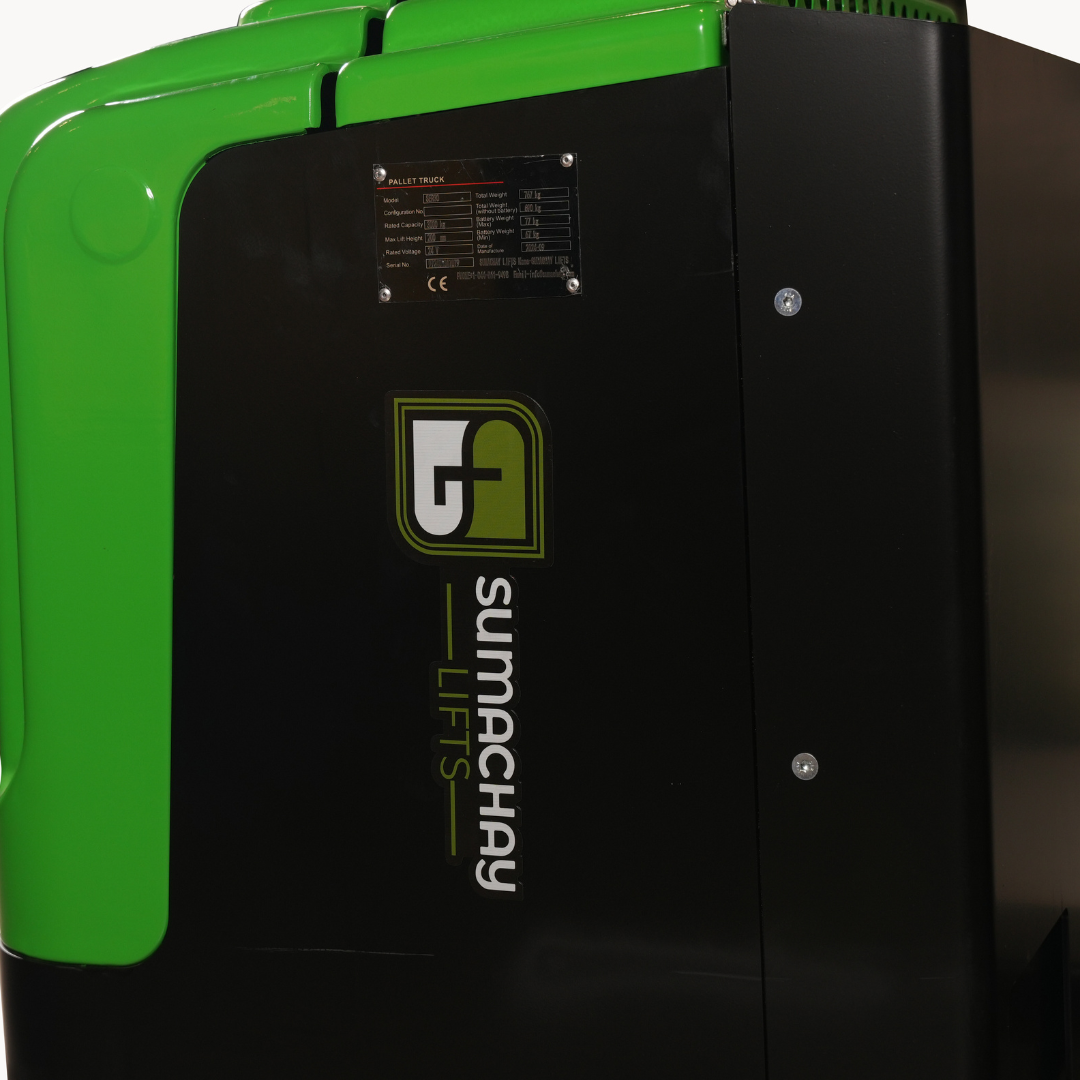

Manufacturer | Sumachay Lifts |
Model | SER30 |
Power Unit | Electric |
Operation | Stand-on |
Rated Traction Weight (Q) | 3 tons |

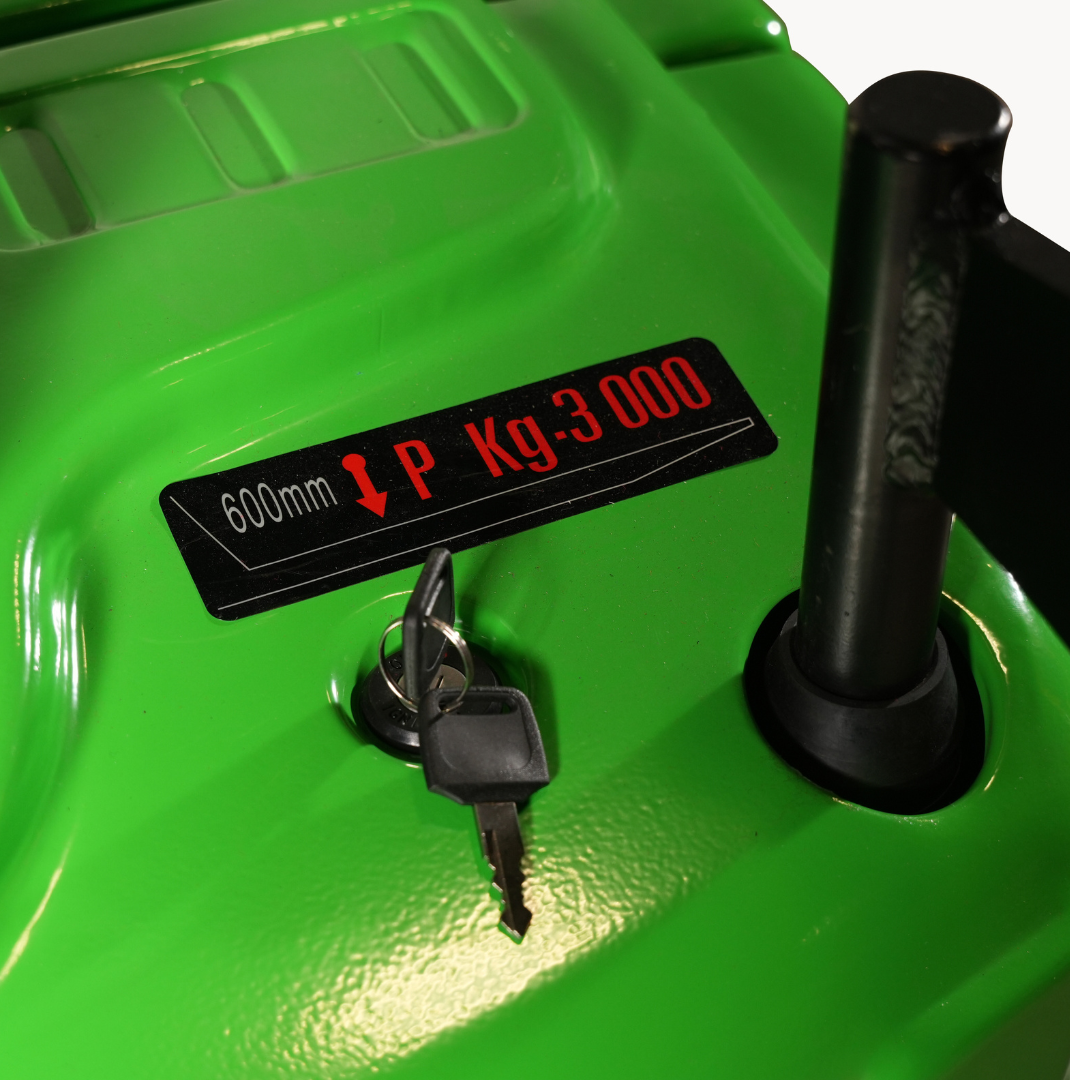

Load Centre (c) | 600 mm (23.62 inches) |
Axle Centre to Fork Face (x) | 1039 mm (40.91 inches) |
Wheel Base (y) | 1560 mm (61.42 inches) |
Service Weight with Battery | 850 kg (1873.93 lbs) |
Wheel Type | Polyurethane |
Driving Wheel Size (Φ×w) | Φ250×75 mm (Φ9.84×2.95 inches) |
Bearing Wheel Size (Φ×w) | Φ80×80 mm (Φ3.15×3.15 inches) |
Additional Wheels (Φ×w) | Φ115×55 mm (Φ4.53×2.17 inches) |
Wheels, Number Front/Rear (x = driven) | 1x+2/4 |
Track Width (b10) | 580 mm (22.83 inches) |
Track Width (b11) | 355/500 mm (13.98/19.69 inches) |
Lift (h3) | 200 mm (7.87 inches) |
Overall Height with Handle (h14) | 1150/1455 mm (45.28/57.28 inches) |
Overall Length (l1) | 1910 mm (75.2 inches) |
Overall Length (with configuration) | 1985 mm (78.15 inches) |
Overall Width (b1/b2) | 808 mm (31.81 inches) |

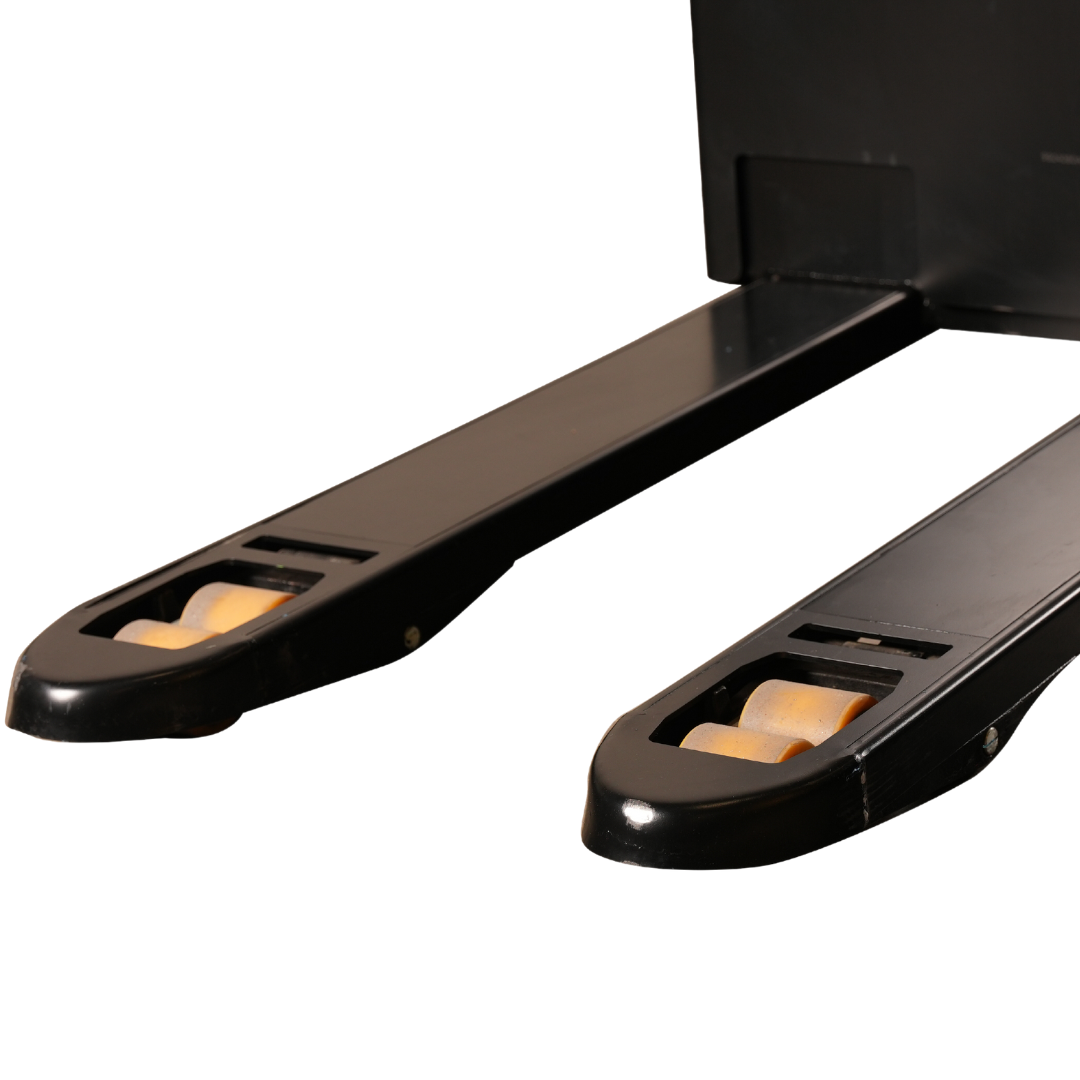

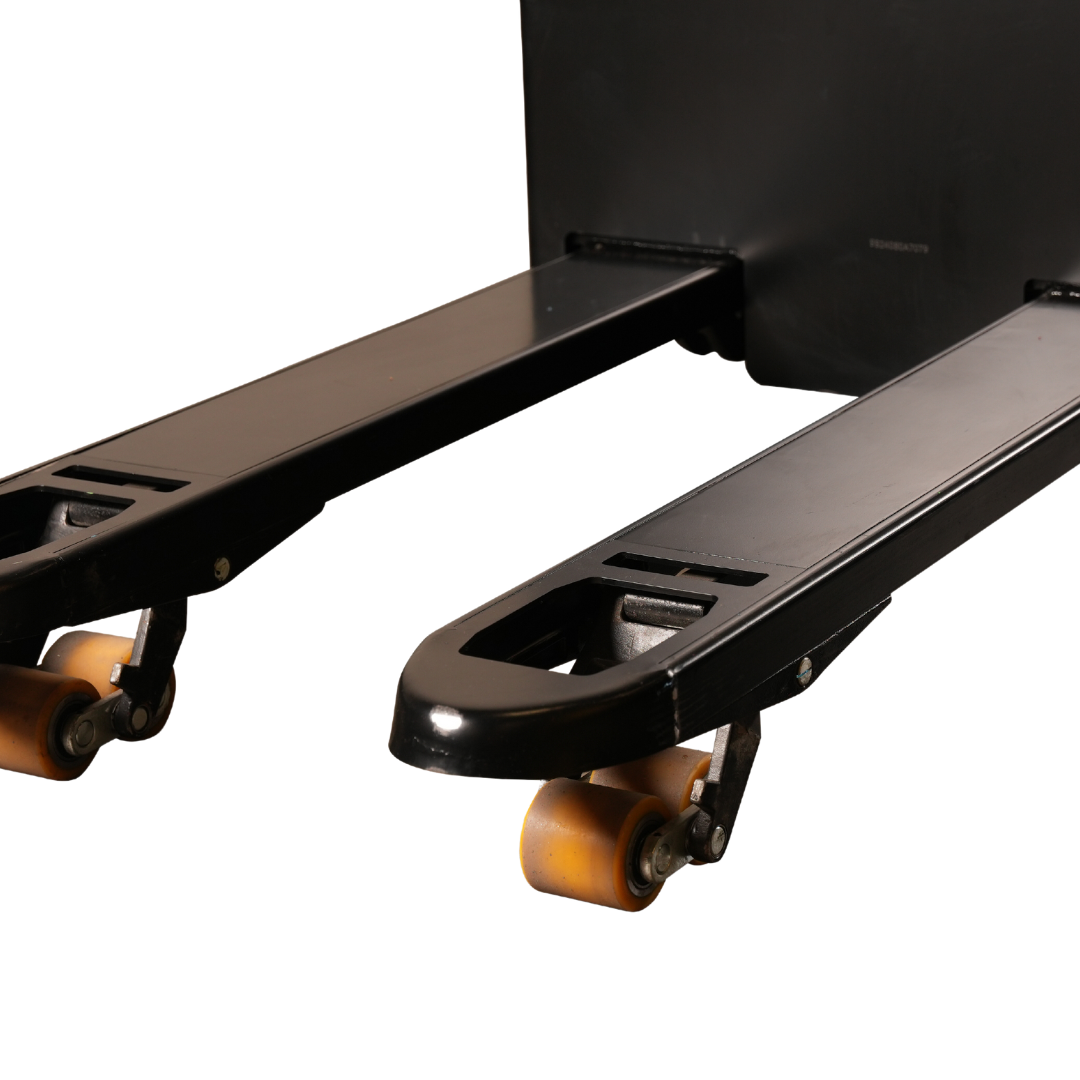

Fork Dimensions (s/e/l) | 50/185/1150 mm (1.97/7.28/45.28 inches) |
Width of Forks (b5) | 540/685 mm (21.26/26.97 inches) |
Min. Ground Clearance (m2) | 35 mm (1.38 inches) |
Aisle Width with Pallet (across forks) | 2180 mm (85.83 inches) |
Aisle Width with Pallet (along forks) | 2380 mm (93.7 inches) |
Min. Turning Radius (Wa) | 1746 mm (68.74 inches) |
Travel Speed (Laden/Unladen) | 5.2/5.5 km/h (3.23/3.42 mph) |
Lifting Speed (With/Without Load) | 15/18 mm/s (0.59/0.71 inches/s) |
Lowering Speed (With/Without Load) | 35/16 mm/s (1.38/0.63 inches/s) |
Max. Climbing Ability (With/Without Load) | 6/8 % |
Service Brake | Electromagnetic Brake |
Drive Motor (60 Minute Rating) | 3 kW |
Lift Motor Rating (S3 15%) | 2.2 kW |
Battery Type | Lithium Iron Phosphate |
Battery Voltage/Rated Capacity | 24V/200Ah |
Type of Drive Control | AC |
Noise Level at Operator’s Ear | ≤70 dB(A) |
Electrical Power Steering | Yes |
Elevate your material handling operations with the SER30 Ride On Electric Pallet Jack, engineered for heavy-duty performance and unmatched efficiency. With a powerful 3-ton capacity, this lithium-ion-powered jack is built to tackle demanding tasks in warehouses, distribution centers, and industrial facilities.
Key Features:
- Exceptional Load Capacity: Effortlessly handle loads up to 2999 Kgs, ideal for high-capacity lifting and moving.
- Advanced Electric Power Steering (EPS): The intelligent EPS system ensures precise, easy control with smooth handling and stable turning.
- CURTIS AC Controller: Enables precise speed control for smooth, responsive acceleration and braking.
- Pressurized Cylinders: Fast lifting with anti-skid features for safe heavy load handling.
- Ergonomic Design: Shock-absorbing pedal reduces vibration, enhancing operator comfort.
- Compact & Agile: Tight 67.7-inch turning radius for easy navigation in narrow spaces.
- Convenient Storage: Built-in storage trays keep essential tools within easy reach.
- Robust Build: Strong chassis with stable lateral support for durability.
Backed by a high-performance lithium-ion battery, the SER30 Ride On
